Small Volume Prover Accessories and Spare Parts

Flow MD offers a full range of small volume prover accessories designed to enhance the performance and adaptability of your FMD meter prover. We supply complete spare part kits for Flow MD provers, along with seal kits compatible with provers from other manufacturers. Each kit includes the essential components needed to replace worn or damaged parts and maintain peak performance. With our comprehensive selection of prover accessories and spare parts, Flow MD helps ensure your small volume prover operates smoothly, reliably, and accurately for years to come.

Sensor Kit

FMD Small Volume Prover Transmitter Type Options

All FMD provers are equipped with two temperature and one pressure transmitter. One temperature transmitter is used for expansion calculations on the switch bar. The other temperature transmitter works in conjunction with the pressure transmitter to verify process fluid temperature and pressure during the proving process.

Transmitter Choices Include:

  • Rosemount
  • Endress Hauser
  • Yokogawa
  • Customer Specified – Contact Factory

Got Questions? Please reach out to us.

Seal & Spare Parts Kits

FMD Small Volume Prover Seal Kits

Seal Kits

Seals are needed to prevent leaks both externally & internally.  Seal kit types for FMD Provers include:

  • Carbon
  • Ekonal
  • NGL
  • Crude
  • Low Temp
  • Cryogenic

Did we mention we stock seal kits for all small volume prover makes and models, not just FMD Provers.

Spare Parts

FMD offer the option to purchase spare part kits when placing your prover order, spare parts are also available for service and repair work.

Electrical Spare Part Kit Includes:

  • 3 ea Optical Switches
  • 1 ea Stop Switch
  • 1 ea Contact Relay (motor)
  • 1 ea DC Relay (clutch)

Other Spare Parts Include:

  • P.I.M Board
  • P.I.M Display
  • Optical Switch Harness
  • Optical Switches
  • Stop Switch

Don’t see what you are looking for?  Please contact us with questions

Drain Kit

FMD Small Volume Prover Spare Part Kits

The optional drain kit is connected to the provers drain flanges.  The drain kit allows for proper and quick product removal for prover servicing.

Need Additional info?  Please reach out to us.



Thermal Relief Kit

FMD Small Volume Prover Pressure Relief Valve Option

Thermal relief valves are used on provers to protect against over-pressurizing. The valve can be specified by FMD or customer choice. Included with the installation is the connection hardware and an isolation ball valve.

Valve Settings Options:

  • Customer Defined
  • Factory set to ANSI flange spec of prover

Note: Additional installation piping to a safe discharge area is required.

Need more info? Contact us.

Leak Detector Kit

FMD Small Volume Prover Internal Leak Detector Option

The internal leak detection kit is designed to save maintenance time and costs by verifying the quality of the seals. Ensuring seal replacement is done only when it needs to be.

Need additional info? Please reach out.

Shaft Seal Monitor Kit

FMD Small Volume Prover External Leak Detector Option(s)

Secondary seal protection with alarms before the product releases into the environment.

Applications Include:

  • The State of California
  • Unmanned Proving Stations

Additional Images:

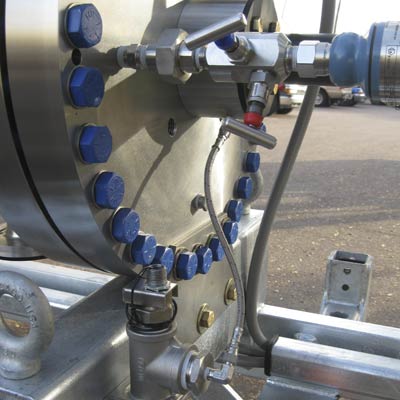

Shaft Seal Leak Protection for compressed gasses (propane, ethane, butane):

FMD Small Volume Prover Accessory - External Leak Detector

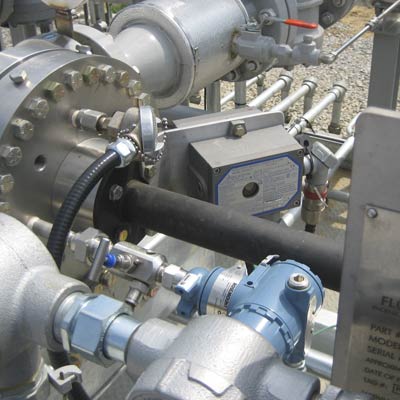

Shaft Seal Leak Detection for liquids (oil, gasoline, jet fuel, diesel):FMD Prover Accessory - External Leak Detector Kit





Prover Spring Assist

FMD Small Volume Prover Assist Spring Assembly Option

The Prover Assist spring assembly is ideal for the following applications:

  • For initial run up of the prover after clutch release
  • For low flow applications.
  • For high pressure dry product applications
  • Portable provers that operate at both low and high flow

To find out if your application is a good fit for this accessory, please reach out to our sales department.

Prover Validation Kit

FMD Small Volume Prover Prover Validation Kit Option

The Prover Validation Kit uses an encoder for prover validation by measuring the distance between the optical switches allowing for the following to be determined: measured volume, prover volume per run, variance volume, flow rates on primary and secondary volumes.

Got Questions? Reach out.



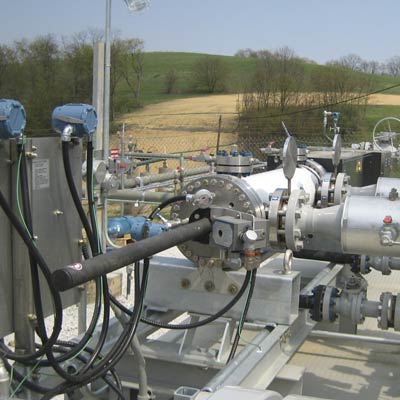

Insulation Kits

FMD Small Volume Prover Insulation Jacket Options

Insulation kits help maintain consistent process fluid temperatures. Insulation kits can be used to protect against heat loss or to maintain cold temperatures.

Applications include:

  • Liquefied Gasses (cold)
  • Heat Tracing for maintaining fluid temperature / density

Got questions about insulation jacketing?  Contact Us

Prover Data Acquisition (PDAQ)

FMD Small Volume Prover PDAQ Option

The Prover Data Acquisition Module (PDAQ) is an interface between a compact prover and a flow computer. The PDAQ has has various features which include various I/O an double chronometry capability. See our PDAQ Information Sheet.

Density (Mass) Proving Kit

FMD Small Volume Prover Density (Mass) Proving Kit Option

Adding the density option enhances measurement potential allowing for volume verification of density in volumetric applications. Density measurements are required for mass proving.

FMD’s density package includes a density loop to verify density at the time of proving. Providing a complete and accurate measurement verification of a mass meter with volumetric outputs.

Applications

  • Density
  • Mass Meters
  • Mass Balance

Learn More about Mass Proving Applications.

Spectacle Blind Kit

FMD Small Volume Prover Spare Part Kits

When a water draw is necessary for Prover verification, spectacle blinds are a useful option that allows for a complete seal of the system. All FMD spectacle blinds are produced according to ASME B16.48 and designed to withstand pressure–temperature combinations listed in the ASME B16.5 flange design specification.

Got questions? Please contact us.

Portable Prover

FMD Small Volume Prover Spare Part Kits

A Prover mounted on either a truck or a trailer is ideal for load rack proving and other proving applications where a stationary Prover is not feasible or available. Swivel joints and hoses allow for connection to site proving taps. For higher pressure applications, loading arms make the loading and unloading process efficient and cost effective while allowing for easy operation and safe handling.

Need Additional information on portable provers.  Please contact us with questions.

Water Draw Kit

FMD Small Volume Prover Water Draw Kit Option

The FMD water draw kit is a system enclosed a rugged case allowing for field calibration of a prover.  The kit contains all solenoid and hand actuated valves, along with the various tubing and electrical to perform a water draw.

Purge Coverset and Controller

FMD Small Volume Prover Purge Controller Option

The purge coverset and controller are used in conjunction with one another for low temperature product applications.  The purge controller regulates a local nitrogen source through the prover’s nitrogen purge coverset. This prevents ice build up on the portions of the prover that reciprocate in and out of the cold process conditions.

Learn More About FMD Low Temperature Provers.

Flange Placement

FMD Small Volume Prover Flange Configuration Options

FMD gives you choices.  We know that different applications have different flange placement requirements.  You can choose have choices when it comes to configuring your prover for your application. Choose the flange location that works best for you and your application.

Click here to enlarge.

Electrical Panel Placement

FMD Small Volume Prover Electrical Panel Placement Options

The placement of the electronics unit can be varied based on your application needs. The electronics package can be mounted in any position inside the prover frame for ease of access, servicing, safety or compliance with specifications. Click here for additional information.
